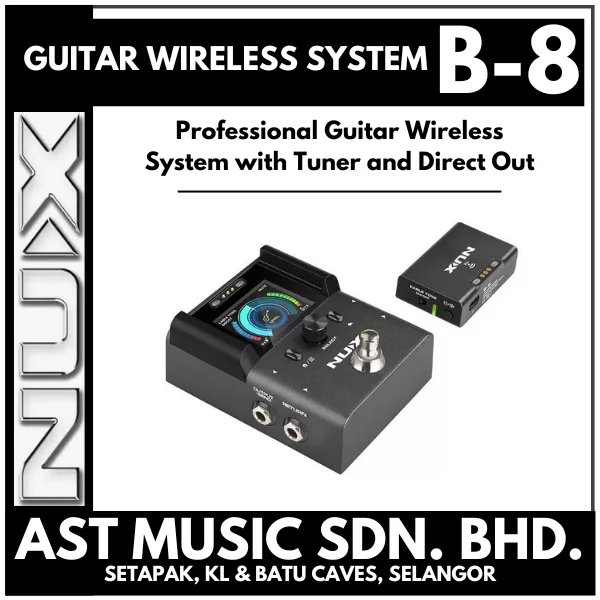

Nux B-8 2.4GHz Professional Guitar Wireless System with Tuner and Direct Out / B8

Nux B-8 2.4GHz Professional Guitar Wireless System with Tuner and Direct Out (B8)

Professional wireless Redefined!

NUX B-8 is a redefined wireless system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality audio transmitting. The signal transmitting latency is as low as 2.5ms at the best performance. The operation range is up to 50 meters (160-feet).

B-8 wireless system fits all types of electric guitar, electric-acoustic guitar, bass guitar, and various instruments with electronic pickups. No matter what instrument you play, you can enjoy the convenience with B-8 wireless.

The user-friendly matching system makes it easier to use, just turn on the TX&RX and it will be paired within a couple of seconds. Each wireless set has a unique pairing algorithm, it automatically detects each other and configures their own IDs.

Specification :

• Operating Frequency Band : 2400-2483.5MHz
• Audio Quality : 24bit/48kHz
• Frequency Response : 20Hz-20kHz
• Latency : 2.5ms(best performance setting)-8.7ms(safety mode)
• Input Impedance : 1 MΩ
• Maximum Input Level : 1 kHz at 1% THD  +6.2 dBV (5.78 Vp-p)
• THD+N : 0.01% 1kHz, typical
• Dynamic Range : 122dB, A-weighted(OUTPUT/SEND)
• Output level Adjustment Range : mute -64dB~0dB
• Auto-sleep Mode : N/A
• Built-in Battery Capacity : 3.7V/500mAh Rechargeable Li-polymer (Transmitter)
• TX Battery Life : up to 6.5 hours
• Power Requirements : 7V to 12V DC, 500mA min, negative tip power supplies(Receiver)
• Operation Range : Up to 50 m (165 feet) maximum
• TX dimesions : 72.5mm*49.3mm*23mm  (L*W*H)
• TX weight : 63g
• RX dimensions : 122*95*60mm (L*W*H)
